An EZGO key switch controls every start cycle on your golf cart, sending the low voltage signal that wakes the solenoid and controller the moment you turn the key.
The key turns and nothing happens.
The cart starts on the third attempt, then refuses on the fourth.
A worn tumbler lets the key wiggle loose while you drive.
Few failures feel more frustrating than a cart that will not wake up in your own driveway. You begin doubting the batteries, the controller, and the wiring when the real culprit sits behind one small dashboard switch.
Key switches wear out from thousands of on and off cycles. Corroded contacts, loose terminals, and tired tumblers all interrupt the start signal before it ever reaches the drivetrain.
Three problems bring most owners to us:
- A switch that tests fine one day and dead the next, which points to worn contact plating.
- A gas, electric, or lithium switch ordered for the wrong powertrain that never completes the start circuit.
- A common key that every neighbor's cart also accepts, which leaves the cart unprotected.
Carts & Parts stocks genuine OEM switches for every current EZGO powertrain and matches them to your exact model before you order. In this guide, you will learn how each EZGO key switch works, which part number fits your cart, and how to test and replace a failing unit.
Key Takeaways
Which EZGO key switch fits electric 48V and 72V carts?
The OEM EZGO RNF Snap-In Keyswitch (PN# 611283) fits 2008 to 2025 electric Express, Freedom RXV, and Hauler models running 48V or 72V systems. The switch excludes gas and ELiTE Lithium carts and ships without a key, since the common key carries part number 611282.
What key switch do EZGO gas carts use?
EZGO gas and EFI carts use the OEM EZGO Gas Ignition Key Switch (PN# 611284), a 2-position OFF/ON design. Gas carts select direction through a separate lever, so the ignition switch only needs to open and close the start circuit for RXV, Express, and Cushman gas models.
Do ELiTE Lithium carts need a different key switch?
EZGO ELiTE Lithium carts require a 4-position OFF/Reverse/Neutral/Forward switch such as the OEM EZGO Ignition Key Switch (PN# 653072). Lithium models route direction selection through the key switch itself, so a standard electric or gas switch will not operate the cart correctly.
Can an EZGO key switch improve cart security?
The OEM EZGO Unique Key Switch for ELiTE Lithium models (PN# 655131) ships with two uniquely cut keys instead of the common key used across most EZGO carts. A unique key prevents any standard EZGO key from starting your cart, which matters in neighborhoods where identical carts sit in every garage.
What Does an EZGO Key Switch Do?
The EZGO key switch acts as the master gate between your battery pack and the controller, closing a low voltage circuit that authorizes the solenoid to pass high amperage current to the motor. No key signal means no start, no matter how healthy the rest of the system is.
Turning the key does not send drive current through the switch itself. The switch only carries a small control signal, which keeps the heavy amperage on thick cables where it belongs.
Failures usually start at the contact surfaces. Repeated cycles wear the plating, corrosion builds resistance, and the signal weakens until the solenoid stops responding.
How Does the Key Switch Work With the Rest of the Ignition Circuit?

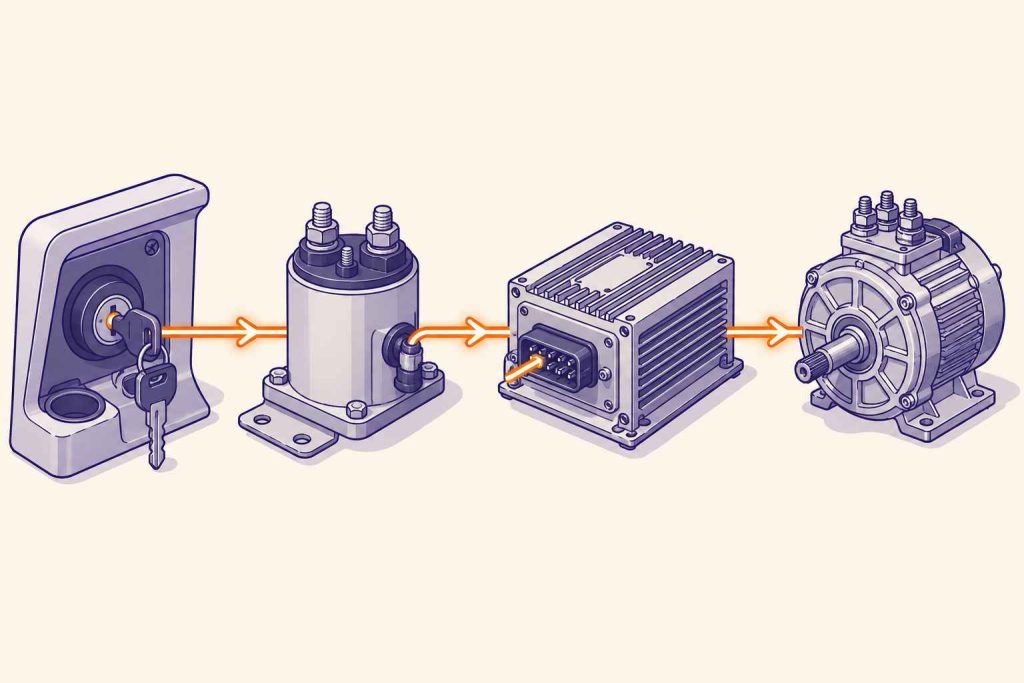

Power flows in a fixed sequence on every EZGO: key switch, then solenoid, then controller, then motor. Each component waits for the one before it, so a dead key switch silences the entire chain.
A weak switch produces confusing symptoms further down the line. Solenoid chatter, delayed starts, and random shutdowns often trace back to the dashboard rather than the drivetrain.
Our complete EZGO Golf Cart Parts Guide explains how every system on the cart connects, which helps when symptoms point in more than one direction.
How Do You Identify the Right EZGO Key Switch for Your Cart?
Powertrain determines the correct switch before model year does, because electric, gas, and ELiTE Lithium EZGO carts each use a different switch architecture. Start with what powers the cart, then narrow by year and model.
Position count is the fastest tell. Gas carts use a 2-position switch, standard electric carts use a snap-in RNF design, and lithium carts run direction selection through a 4-position unit.
Ed Greenrod found out how smooth the process feels when the part matches on the first try:
"Carts and Parts were a great help with getting my cart back up and going. The part fit perfect, worked perfect, the price point of my part was great and the process was easy. I recommend them for sure. The coozies were a nice add."
More than 2,000 online reviews with a near perfect rating back that experience. Our EZGO Controls and Switches Guide covers the full control system if your symptoms reach beyond the key.
What Is Your Key Switch Replacement Plan?
Replacing an EZGO key switch takes four steps:
- Confirm your model and year by pulling the code from our EZGO serial number list before ordering anything.
- Match the powertrain, since electric, gas, and ELiTE Lithium each take a different part number.
- Order the OEM switch, because factory parts match voltage ratings and terminal layouts exactly.
- Test before final assembly by verifying continuity at the new switch, then button up the dash.
Which Key Switch Fits Electric 48V and 72V EZGO Carts?
Electric Express, Freedom RXV, and Hauler models built from 2008 to 2025 use the OEM EZGO RNF Snap-In Keyswitch (PN# 611283), a snap-in design made for 48V and 72V systems. The switch replaces the older part number H611283 and excludes gas and lithium models.
One detail catches buyers off guard. The switch ships without a key, because most EZGO carts share the common key under part number 611282, and owners usually keep several.
Snap-in mounting speeds up the swap. The old unit pops out of the dash bezel, the harness plug transfers over, and the new switch clicks into place without fasteners.
Confirm your cart against the factory documentation in the official E-Z-GO owner's manuals before ordering if the model year sits near a production changeover.
| Part Number | Powertrain | Positions | Fits Models | Key Included |
|---|---|---|---|---|
| 611283 | Electric 48V and 72V | RNF snap-in | 2008 to 2025 Express, Freedom RXV, Hauler | No (common key 611282 sold separately) |
| 611284 | Gas / EFI | 2-position OFF/ON | Gas RXV, Express, Cushman EFI | No (common key 611282 sold separately) |
| 653072 | ELiTE Lithium | 4-position OFF/R/N/F | Lithium RXV, Express, Liberty, Hauler | No (common key 611282 sold separately) |
| 655131 | ELiTE Lithium (security) | 4-position OFF/R/N/F | ELiTE Lithium and compatible Cushman | Yes, 2 unique keys |
Source: Carts & Parts OEM product listings. Confirm fitment by serial number before ordering.
Does the RNF snap-in switch include a key?
The PN# 611283 switch ships without a key. Most electric EZGO carts accept the common key, sold separately under part number 611282.
Will the 611283 switch fit a lithium cart?
The RNF snap-in switch excludes ELiTE Lithium models. Lithium carts require a 4-position switch that handles direction selection.
Which Ignition Switch Fits EZGO Gas and EFI Models?
Gas and EFI powered RXV, Express, and Cushman models use the OEM EZGO Gas Ignition Key Switch (PN# 611284), a 2-position OFF/ON unit built for engine start circuits. Gas carts select direction at a separate lever, so the ignition switch stays simple by design.
Simplicity does not mean interchangeability. A gas switch wired into an electric cart leaves the direction circuit dead, and an electric switch in a gas cart never completes the start sequence correctly.
💡 Tip: Photograph the harness plug before removing the old switch. Terminal orientation matters more than most owners expect, and one photo prevents a backwards reassembly.
Jeremy Romero ordered his electrical parts the same way most of our customers do:
"Ordered an OEM EZgo brake and complete wiring harness. Great prices and fast shipping! Would recommend for any of your cart parts needs"
Heat and vibration wear gas ignition switches faster than their electric cousins. Engine shake loosens terminals over time, so inspect the connections whenever the switch comes out.
How Do ELiTE Lithium Key Switches Differ?
ELiTE Lithium EZGO carts run direction selection through the key itself, using a 4-position OFF/Reverse/Neutral/Forward layout that standard electric and gas switches cannot replicate. Two OEM options cover lithium owners, one for standard replacement and one for added security.
What Is the Standard Lithium Replacement Switch?
The OEM EZGO Ignition Key Switch for ELiTE Lithium carts (PN# 653072) serves as the direct snap-in replacement for lithium RXV, Express, Liberty, and Hauler models. Each detent position sends a distinct signal, so the controller always knows exactly which mode you selected.
Worn detents show up as vague, mushy key travel. A healthy switch clicks positively into all four positions and holds there.
✅ Good to Know: A lithium cart that starts but refuses to change direction often has a failing key switch, not a failing controller. Test the switch first, since the diagnosis costs nothing but a few minutes.
Which Switch Adds Theft Protection for Lithium Carts?
Security minded owners can step up to the OEM EZGO Unique Key Switch for ELiTE Lithium models (PN# 655131), which ships with two uniquely cut keys in place of the common key. Any neighbor's standard EZGO key becomes useless in your ignition.
Unique keys matter most in golf cart communities. Identical carts with identical keys sit in garages up and down the street, and one shared key pattern protects none of them.

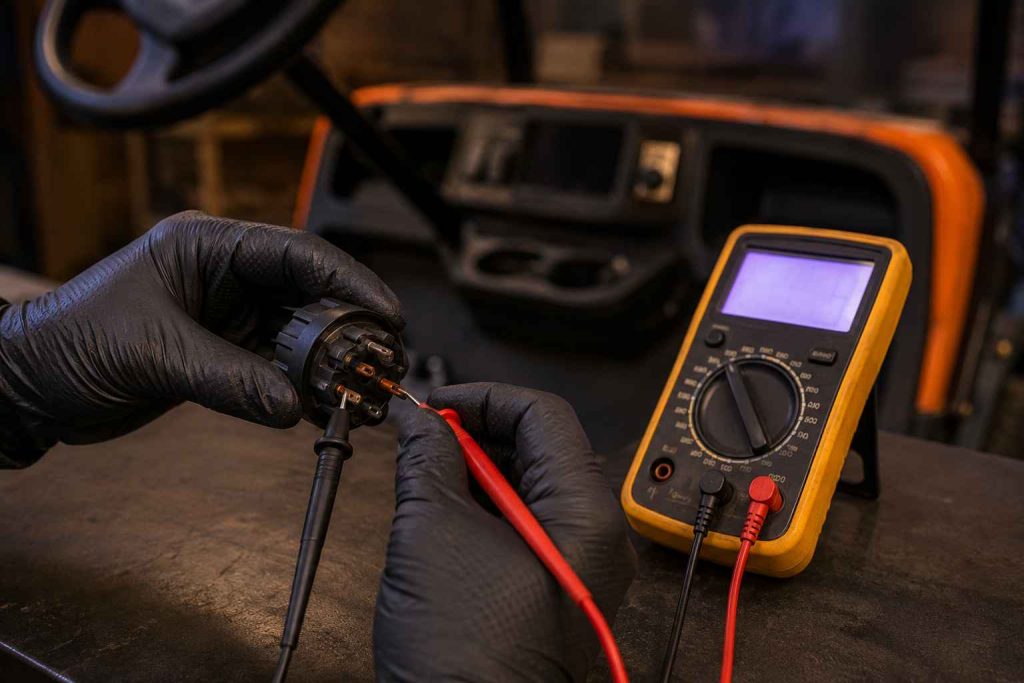

How Do You Test an EZGO Key Switch With a Multimeter?
A digital multimeter set to continuity confirms or clears the key switch before you spend money on parts. Disconnect the battery pack completely before touching any terminal, and follow the OSHA electrical safety guidelines for every step.
- Disconnect power by removing the main positive cable first, then the negative.
- Access the switch by releasing the dash bezel or lower cover to reach the harness plug.
- Test the OFF position, where the meter should read open with the key off.
- Test each ON position, where a healthy switch reads near zero ohms in every active position and open readings confirm internal failure.
🚨 Warning: Never bridge the key switch terminals to force a start with power connected. Bypassing the switch defeats the safety interlocks built into the ignition circuit.
Testing also separates switch problems from deeper wiring faults. Our guide on how to safely hotwire a golf cart walks through emergency diagnosis when you need to isolate the failure point in the field.
Why Does a Golf Cart Key Switch Fail?
Wear, corrosion, and heat cause nearly every golf cart key switch failure. Contact plating erodes over thousands of cycles, moisture creeps past the dash and oxidizes the terminals, and loose connections build resistance that cooks the housing from the inside.
Environment accelerates all three. Carts stored outdoors or ridden through wet grass see switch failures years earlier than garage kept machines.
Key handling matters too. Heavy keychains hanging off the ignition strain the tumbler every time the cart hits a bump.
Is an EZGO Ignition Switch the Same as a Key Switch?
Owners use both names for the same part, though EZGO ignition switch appears more often on gas cart listings and key switch on electric ones. The function stays identical: a keyed gate that authorizes the start circuit.
Part numbers remove the confusion entirely. Match 611283, 611284, 653072, or 655131 to your powertrain and the naming never matters.
What Happens If You Ignore a Failing Key Switch?
A failing EZGO key switch rarely stays a nuisance for long.
- Intermittent starts become no starts, usually on the day the cart is needed most.
- Owners replace the solenoid, the controller, or the batteries chasing a fault that lives in a small dashboard switch.
- Corroded terminals build resistance that heats the switch housing and the harness plug behind it.
- A worn tumbler lets the key fall out in motion, and a cart that loses its key signal at speed shuts down without warning.
What Does a Properly Working Key Switch Feel Like?
A correct OEM EZGO key switch starts the cart on the first turn, every time, and holds the key firmly in whichever position you choose.
- The key clicks into each position with a positive detent and no mushy travel.
- The solenoid responds instantly, with no delay between turning the key and pressing the pedal.
- Direction selection on lithium carts changes cleanly between forward, neutral, and reverse.
- The key stays put over bumps, and only your keys fit the ignition on a unique key switch.
Christopher Atwood described the ordering side in a few words:
"Parts came quick. Exactly what I needed. Perfect fit. Would do business again."
Get Professional EZGO Key Switch Help
Carts & Parts is an authorized EZGO dealer with more than 2,000 online reviews, free shipping on parts orders over $50.00, and nationwide delivery from our Union City, Indiana shop. Our team matches switches to serial numbers daily, so you order once and install once.
Call (937) 459-8891 to confirm fitment before you order, or browse the full ignition lineup at carts-and-parts.com.
Frequently Asked Questions About EZGO Key Switches
How much does an EZGO key switch replacement cost?
Total cost depends on your powertrain and who installs the part. OEM switches sit at the affordable end of EZGO electrical components, and snap-in designs keep labor minimal. We quote exact pricing by part number when you call.
Can I use a gas ignition switch on an electric EZGO?
No, gas and electric switches wire differently. The PN# 611284 gas switch runs a 2-position start circuit, while electric carts need the RNF snap-in design. Installing the wrong type leaves circuits dead or unsafe.
Do all EZGO carts use the same key?
Most EZGO carts share the common key, part number 611282. Unique key switches like the PN# 655131 break that pattern with individually cut keys for theft protection.
Can I replace just the key instead of the whole switch?
Yes, when the switch itself still tests good. Common keys are inexpensive and available separately. Replace the full switch when continuity testing shows worn or open contacts.
Where do I find my EZGO serial number?
Serial numbers sit near the steering column or under the driver's side seat on most models. Our serial number list covers locations by model year, and we can decode the number for you by phone.
How do I know if the key switch or solenoid failed?
Test the key switch first with a multimeter. Good continuity at the switch with no solenoid click points to the solenoid or its wiring. The switch fails more often and costs less to rule out.
How long does a key switch swap take?
Snap-in switches like the PN# 611283 install in roughly fifteen minutes with basic hand tools. Dash access takes most of that time, and the harness plug transfers in seconds.
Do ELiTE Lithium carts select direction at the key?
Yes, ELiTE Lithium carts select forward, neutral, and reverse at the key with the 4-position 653072 or 655131 switch. Older electric carts handle direction through a separate forward and reverse lever instead.
Will a worn key switch drain my batteries?
A worn switch rarely drains batteries directly, but corroded terminals can create small parasitic paths. Clean, tight connections at the switch protect both the signal and the pack.
Can Carts & Parts install my new key switch?
Yes, our Union City shop handles switch diagnosis and installation, and we ship OEM parts nationwide for owners who prefer the DIY route. We confirm fitment against your serial number either way.
