An EZGO fuel tank on a gas TXT, Valor, or Express feeds the engine through a pickup tube, a vented cap, and on gauge equipped carts, a float style level sender.
The gauge reads full on Monday and empty on Tuesday. A cart that ran for an hour dies on a hill and restarts once the cap comes off. Fuel smell lingers under the seat with nothing dripping.
Each of those problems sends owners toward the carburetor first, while the real fault sits in the tank hardware and imitates an engine problem for months.
Owners run into three fuel tank headaches more than any other:
- The gauge reads wrong or not at all, and the sender, gauge, and wiring all get blamed in turn.
- The cart stalls after running a while because a blocked cap vent is pulling a vacuum.
- A replacement tank or sender does not match because the TXT platform used two tank versions.
Carts & Parts stocks every piece of the EZGO fuel tank system as genuine OEM parts, with fitment checked against your serial number.
The sections below cover how the ezgo fuel tank system works, how to isolate the failing part, and which OEM part restores it.
Key Takeaways
What parts make up an EZGO fuel tank system?
An EZGO fuel tank system on a gas TXT, Valor, Terrain, or Express consists of the molded tank, a fuel pickup tube, a vented fuel cap, a rollover valve, and on gauge equipped carts, a fuel level sender wired to a dash gauge. E-Z-GO sells the tank two ways: 656138 without a sender opening and 656139 with the 656144 pickup and sender preinstalled.
Why does an EZGO fuel gauge read wrong?
An EZGO fuel gauge reads wrong when the sender float sticks, the sender resistance drifts outside its 33 ohm full to 240 ohm empty range, the ground connection corrodes, or the gauge itself fails. Testing resistance at the sender terminals with a multimeter separates a bad sender from a bad gauge in a few minutes.
Which fuel level sender fits an EZGO TXT?
The OEM EZGO Fuel Level Sender PN# 20048G2 fits gas TXT, Medalist, Valor, Express, Shuttle, Workhorse, and MPT models equipped with an electric fuel gauge, and it does not fit the RXV gas tank. The sender is built for a tank depth of 10 13/16 inches and reads 33 ohms at full and 240 ohms at empty.
Why does a bad fuel cap make an EZGO stall?
A fuel cap with a blocked vent lets the tank pull a vacuum as fuel is consumed, and the pump eventually cannot draw against it. The cart stalls after running a while, hisses when the cap is loosened, and restarts once air enters the tank. The OEM EZGO Fuel Cap PN# 670898 includes a fresh seal gasket and tether and fits 1994 to 2025 gas models.

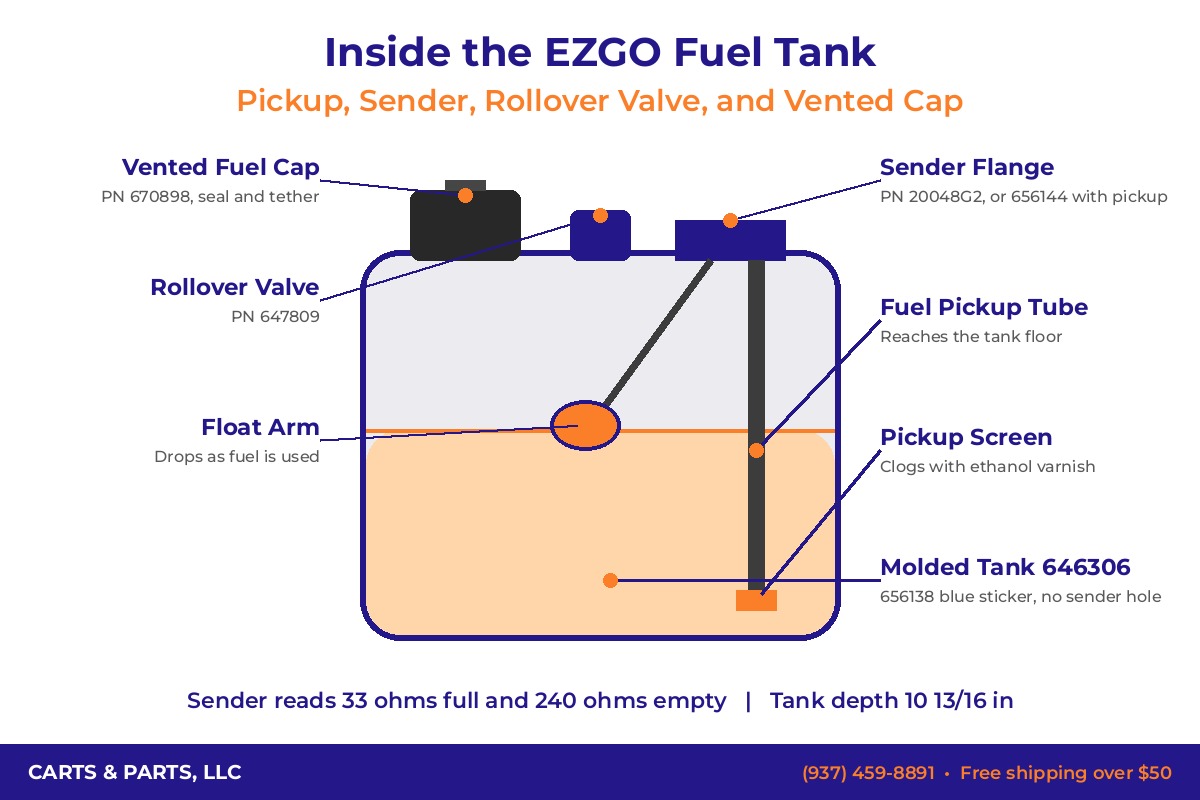

How Does the EZGO Fuel System Work From Tank to Gauge?
EZGO TXT, Valor, Express, and Cushman Hauler gas carts route fuel from a molded under seat tank through a pickup tube, out to the fuel pump and carburetor or EFI system, while a separate level sender reports tank contents to the dash fuel gauge.
Nothing on the tank side moves except the sender float, which is why these parts last for years and then fail without warning. Our EZGO golf cart parts guide shows where the fuel system sits among the other components on your cart.
What does the fuel pickup do?
The fuel pickup is a rigid tube that reaches from the tank top opening to within a fraction of an inch of the tank floor, with a filter screen that keeps debris out of the line feeding the Kawasaki engine's pulse pump.
E-Z-GO sells the pickup two ways. The 656135 pickup has no sender attached and installs in tanks with a single opening, while the 656144 pickup carries the level sender on the same mounting flange and installs in tanks with a sender opening.
How does the sender talk to the gauge?
The fuel level sender is a variable resistor connected to a float arm. As fuel drops, the float swings down, resistance climbs toward 240 ohms, and the gauge needle falls. A full tank pulls resistance down to 33 ohms and the needle rises.
Switched 12 volts, a signal wire, and a ground complete the circuit, and any one of them corroding produces a reading that looks like a failed part.
Which EZGO Fuel Tank Fits Your Cart?
The OEM EZGO Fuel Tank Assembly Without Sender PN# 656138 is the correct replacement for gas TXT, Valor, Terrain 250, Freedom TXT, and Cushman Hauler 800 models that never had a dash fuel gauge, and it ships as a complete assembly rather than a bare tank.
Inside the box are the 646306 tank, the 656135 pickup without sender, the 647809 rollover valve, and a ratchet style fuel cap. A blue sticker on the tank identifies this version. The sender equipped twin, 656139, carries a red sticker and includes the 656144 pickup with sender instead.
Both tanks replace discontinued numbers 618120, 620180, 645032, 645033, and 646822. Pre 2016 carts also need the 649515 fuel line assembly with the quick connect fitting.
The EZGO golf cart gas motor guide covers the engine side of the system, from the pump and carburetor through the clutches and belt.
| Part Number | Component | Sender | Identifier | Pairs With |
|---|---|---|---|---|
| 656138 | Fuel Tank Assembly (tank, pickup, rollover valve, cap) | No sender opening | Blue sticker | 656135 pickup, 670898 cap |
| 656139 | Fuel Tank Assembly with Sender | Sender installed | Red sticker | 656144 pickup, 648247 or 21553G1 gauge |
| 656144 | Fuel Pickup with Sender | Integrated | Wiring plug at flange | Sender opening tanks only |
| 20048G2 | Fuel Level Sender | 33 ohm full, 240 ohm empty | 10 13/16 in tank depth | TXT platform tanks, not RXV |
| 649515 | Fuel Line Assembly, quick connect | n/a | Pre 2016 carts | Required with 656138 or 656139 on older carts |
Source: Genuine OEM E-Z-GO part specifications as listed on carts-and-parts.com. Confirm fitment by serial number before ordering.
Michael King replaced his tank and found the part matched the listing exactly:
"Super fast shipping, gas tank was exactly as described and for a great price. Then tag on great customer service and you have an amazing company. I'll definitely use them again!"
Carts & Parts has earned more than 2,000 online reviews with a near perfect rating by matching the right tank version to the cart before the order ships.
What Is the Right Order to Diagnose an EZGO Fuel Problem?

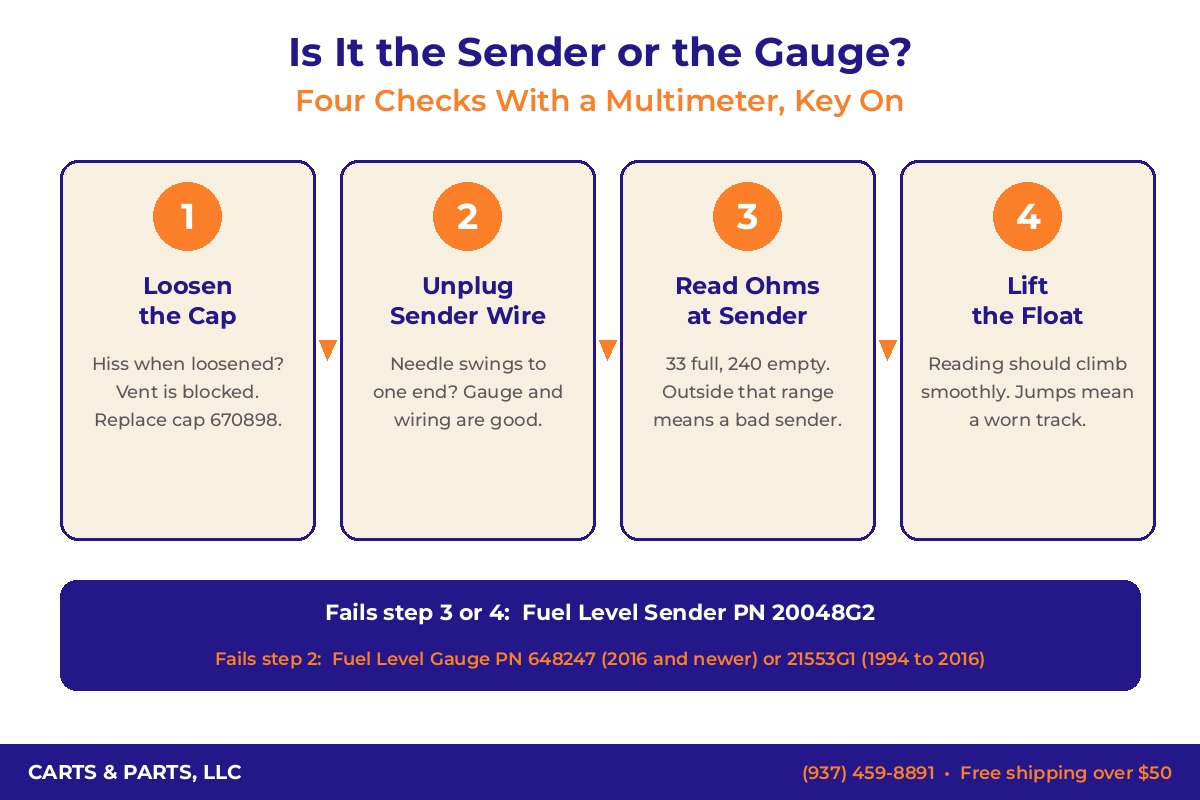

Fuel problems on an EZGO TXT or Valor get diagnosed from the outside in, starting at the cap and ending at the gauge, so the cheapest parts get ruled out before anything comes apart.
- Loosen the fuel cap and listen for a hiss, then run the cart with the cap loose. A stall that goes away points to a blocked cap vent.
- Pull the seat and inspect the tank, hoses, and pickup grommet for cracks, swelling, or wet spots. Ethanol blends harden old rubber quickly.
- Disconnect the sender signal wire with the key on. A gauge that swings to one extreme confirms the gauge and wiring work, and the sender is the fault.
- Measure resistance across the sender terminals. Readings outside the 33 to 240 ohm range, or a reading that jumps as the float moves, mean the sender needs replacement.
Michael Donovan went through his first service on a gas cart with one phone call:
"I needed to do the first service on my ezgo cart , I found carts & parts on line . The dealer where I bought the cart at doesn't even stock the oil change and tune up kit, I would of had to load it on my trailer to take it 45 miles one way to have it serviced. Just not happening. Back to carts & parts , one call and I was set up with the oil ,new plug ,air filter And I even ordered an hour meter, an item my cart never came with. So from now on if I need anything else for my cart my got place is CARTS & PARTS So thank again for having what I needed and fast shipping on my items M.Donovan"
Call or text (937) 459-8891 with your serial number and what you found in the four checks, and a technician will match the symptom to the correct OEM part.
Why Does Your EZGO Fuel Gauge Read Wrong?
An EZGO fuel gauge on a gas TXT, Valor, or Express reads wrong for one of four reasons: a sticking or failed sender, a corroded ground, a broken signal wire, or a gauge whose internal coil has opened up.
Symptom: The needle sits on empty or full regardless of fuel level.
Cause: The sender circuit is open or shorted, usually from a corroded terminal or a dead sender.
What it means: Test resistance at the sender before buying a gauge.
Symptom: The needle bounces or drifts while the cart sits still.
Cause: The float arm is catching on the tank wall or the resistor track is worn.
What it means: The sender is on its way out and the gauge is fine.
Symptom: The needle moves only when the pedal is pressed.
Cause: Many gas EZGO models power the gauge through the ignition circuit, so the needle rising under throttle and dropping at rest is normal behavior on those carts.
What it means: Nothing is broken.
⚠️ Important: Confirm which gauge your cart uses before ordering. E-Z-GO built TXT platform gas carts with two different fuel gauges across production, and the mounting hardware differs between them.
Which fuel gauge fits a 2016 and newer EZGO?
The OEM EZGO Fuel Level Gauge PN# 648247 fits 2016 to 2025 gas models and ships as the gauge only. E-Z-GO lists 648247 as the superseding part for the older 21553G1, so it also serves as the current replacement when the older gauge is no longer available.
The OEM EZGO Fuel Level Gauge PN# 648247 reads the same 33 to 240 ohm signal as the older unit, so no sender change is needed when upgrading.
Which fuel gauge fits a 1994 to 2016 EZGO?
The OEM EZGO Fuel Level Gauge PN# 21553G1 fits 1994 to 2016 gas models and includes the gauge, three flat washers, three lock washers, and three nuts for the original bracket mounting.
Owners restoring an older Medalist, TXT, or Workhorse who want the factory correct gauge choose the OEM EZGO Fuel Level Gauge PN# 21553G1. The hardware kit matters on these carts because the original nuts are usually seized or missing by the time the gauge fails.
Can I test an EZGO fuel gauge without removing it?
Yes. Turn the key on, disconnect the signal wire at the sender, and watch the needle. A gauge that swings to one end of the scale is working, and the sender is the problem. A needle that never moves means the gauge, the power feed, or the ground is at fault.
Does the EZGO fuel gauge work with the engine off?
Most gas TXT platform carts power the gauge through the ignition circuit, so the needle rises when the cart is running or the pedal is pressed and drops back at rest. Owners often mistake that behavior for a failing gauge when nothing is wrong.
How Do You Test and Replace an EZGO Fuel Sender?
A fuel sender on an EZGO TXT, Medalist, Valor, Express, or Workhorse is tested with a multimeter set to ohms across the two sender terminals, and replaced by unbolting the mounting flange at the top of the tank.
Full tank resistance should read close to 33 ohms and empty close to 240 ohms, climbing smoothly as the float arm is lifted by hand. Jumps, dead spots, or an open circuit mean the resistor track is worn.
Replacement takes under an hour. Disconnect the battery, run the tank low, remove the seat, unplug the harness, remove the flange screws, and lift the old unit straight up so the float clears the opening.
Which fuel level sender fits an EZGO with a factory gauge?
The OEM EZGO Fuel Level Sender PN# 20048G2 fits gas TXT, Medalist, Valor, Express, Shuttle, Workhorse, and MPT models equipped with an electric fuel gauge, and it is sized for a tank depth of 10 13/16 inches.
The OEM EZGO Fuel Level Sender PN# 20048G2 reads 33 ohms full and 240 ohms empty, matching both the 648247 and 21553G1 gauges. One restriction applies: 20048G2 does not fit the RXV gas tank, which uses an in tank pump and sender assembly instead.
When should you replace the pickup and sender together?
The OEM EZGO Fuel Pickup with Sender PN# 656144 replaces the pickup tube and the level sender as one unit on gas Terrain 250, Express S4 and L6, Freedom TXT, and Cushman Hauler models built from roughly 2013 forward.
Choose the OEM EZGO Fuel Pickup with Sender PN# 656144 when the pickup screen is clogged with varnish, the tube is cracked at the flange, or the cart came with the 656139 red sticker tank. The unit does not fit tanks without a sender opening.
| Symptom | Most Likely Cause | Quick Check | OEM Part |
|---|---|---|---|
| Stalls after running, restarts with cap loose | Blocked cap vent, tank vacuum | Hiss when cap is removed | Fuel Cap 670898 |
| Gauge pegged full or empty at all times | Open or shorted sender circuit | Ohms at sender terminals outside 33 to 240 | Fuel Level Sender 20048G2 |
| Gauge needle bounces or drifts at rest | Worn resistor track or catching float | Reading jumps as float arm is lifted | Fuel Level Sender 20048G2 or Pickup with Sender 656144 |
| Gauge dead, sender tests good | Failed gauge, power feed, or ground | Needle does not swing with signal wire disconnected | Fuel Level Gauge 648247 (2016 and newer) or 21553G1 (1994 to 2016) |
| Hesitation on hills, runs out with fuel left | Clogged pickup screen or cracked tube | Inspect pickup after removal | Pickup with Sender 656144 or 656135 |
| Fuel smell or wet spots under seat | Cracked tank, grommet, or hose | Visual inspection with seat removed | Fuel Tank Assembly 656138 or 656139 |
| Gauge moves only under throttle | Normal on ignition powered gauge circuits | Compare to another cart of the same year | None |
Source: OEM E-Z-GO part specifications on carts-and-parts.com and Carts & Parts shop diagnostic practice. Call or text (937) 459-8891 to confirm fitment.
💡 Tip: Photograph the top of your tank before ordering. A single opening means the 656138 tank family and the 656135 pickup. Two openings, or one with a wiring plug, means the 656139 family and the 656144 pickup with sender.
When Should You Replace a Golf Cart Gas Tank Cap?
A golf cart gas tank cap on an EZGO TXT, Valor, or Express needs replacement the first time the cart stalls after running a while and restarts once the cap is loosened, because that pattern means the vent has failed and the tank is pulling a vacuum.
A hiss when the cap comes off, fuel smell with no visible leak, dirt or water inside the tank, and a cap that spins without clicking all point the same direction.
The OEM EZGO Fuel Cap PN# 670898 includes the cap, seal gasket, and tether, replaces older numbers 633423 and 635688, and fits 1994 to 2025 gas models. Buying the OEM EZGO Fuel Cap PN# 670898 alongside any tank side repair removes the most common cause of a vacuum lock stall for very little money.
Ethanol content in pump gas shortens the life of every rubber part on the tank. The U.S. Department of Energy notes that E10 remains the limit for small and non road gasoline engines, so avoid E15 pumps when filling a cart.
✅ Good to Know: A blocked cap vent produces the same stall pattern as a failing fuel pump. Our OEM EZGO fuel pump guide covers the pump side, and we recommend replacing the cap any time the pump comes out.
What Happens If You Ignore EZGO Fuel Tank Problems?
Ignoring a fuel tank fault on a gas EZGO turns a cheap cap or sender job into a pump, carburetor, or tank replacement.
- A blocked cap vent starves the pump, and repeated vacuum stalls wear the pump diaphragm long before its normal service life.
- A clogged pickup screen passes debris once it tears, and that debris ends up in the carburetor jets or EFI injectors.
- A dead sender leaves owners guessing at fuel level, and running the tank dry repeatedly pulls sediment off the tank floor into the line.
- A cracked grommet or swollen hose at the tank lets fuel weep onto the frame and creates a fire risk under the seat.
What Does a Healthy EZGO Fuel System Look Like?
A correctly serviced EZGO fuel tank system starts the cart on the first turn, runs the full tank without a stall, and reports fuel level accurately enough to plan the day around.
- The gauge tracks fuel level smoothly from full to empty with no jumps.
- The cap clicks when tightened and comes off with no hiss.
- The under seat area stays dry with no fuel smell after a long run.
- The cart runs the tank down to the pickup screen without hesitation on hills.
Mike Rohrer called before ordering and got the right parts the first time:
"Called them for a part they went above and beyond to Make sure I got the correct parts very awesome people to do business with highly recommend them price and service excellent"
Get Professional EZGO Fuel System Parts and Service
Carts & Parts is a family owned authorized E-Z-GO dealer in Union City, Indiana, shipping genuine OEM fuel tanks, senders, gauges, pickups, and caps nationwide from carts-and-parts.com.
Every order is checked against your serial number so the tank version, sender depth, and gauge hardware match the cart you own. Free shipping applies to orders over $50.00.
Call or text (937) 459-8891 with your model, year, and serial number, and one of our technicians will confirm the right part on the first call.
Frequently Asked Questions About EZGO Fuel Tanks and Gauges
How do I know if my EZGO tank has a sender?
Pull the seat and look at the top of the tank. A tank with a wiring plug at the pickup flange, or a red sticker on the side, has a sender and belongs to the 656139 family. A single opening with a blue sticker is the 656138 tank without a sender. We confirm the version from your serial number before shipping.
Can I add a fuel gauge to an EZGO that never had one?
Yes, with the sender equipped tank or pickup added. The 656138 tank has no sender opening, so a gauge installation means the 656144 pickup with sender in a compatible tank plus the 648247 gauge wired to switched power and ground. Call us and we will spec the full kit.
What ohm range does an EZGO fuel sender use?
EZGO gas carts with a factory gauge use a 33 ohm full to 240 ohm empty sender, and the 20048G2 sender is built to that range. A gauge from another brand with a different range will read incorrectly even when wired properly.
Why does my EZGO stall after running for a while?
A stall after ten to twenty minutes that clears when the fuel cap is loosened means the cap vent is blocked and the tank is pulling a vacuum. The 670898 cap with a fresh seal and vent fixes it. A stall that does not change with the cap off points to the pump, filter, or carburetor instead.
Does the 648247 gauge fit older EZGO carts?
E-Z-GO lists 648247 as the superseding part for 21553G1, so it works on older carts electrically. We still stock the 21553G1 with its washers and nuts for owners who want the factory correct fit on a 1994 to 2016 cart.
Can I use E15 gas in an EZGO golf cart?
No. The U.S. Department of Energy lists E10 as the limit for small and non road gasoline engines. Use E10 or ethanol free gas, and add a stabilizer when the cart will sit more than a month.
How often should an EZGO fuel cap be replaced?
Replace the cap whenever the vent fails or the seal cracks, which shows up as a hiss when the cap comes off or a stall that clears with the cap loose. We also recommend a new 670898 cap any time the fuel pump is replaced.
Does the 20048G2 sender fit a gas RXV?
No. The RXV gas tank uses an in tank fuel pump assembly with the sender built in, which is a different part entirely. The 20048G2 fits TXT platform tanks with a 10 13/16 inch depth, including Medalist, Valor, Express, Shuttle, Workhorse, and MPT models.
What is included with the 656138 fuel tank assembly?
The 656138 assembly includes the 646306 molded tank, the 656135 fuel pickup without sender, the 647809 rollover valve, and a ratchet fuel cap. Pre 2016 carts also need the 649515 fuel line assembly with the quick connect fitting, which we can add to the order.
Do you ship EZGO fuel tanks nationwide?
Yes. We ship complete tank assemblies, pickups, senders, gauges, and caps anywhere in the country, with free shipping on orders over $50.00. Send your serial number by text to (937) 459-8891 and we will confirm fitment before the order goes out.
