The EZGO RXV leaf spring bushing is a small rubber component with a big job: it cushions every impact your rear suspension absorbs and keeps metal from grinding against metal at every pivot point.
When it wears out, your ride suffers fast.
- A bump that used to go unnoticed now rattles through the frame.
- A clunk announces itself every time you accelerate or brake.
- Your cart leans or squats in a way it never used to.
Tracking down that noise takes time.
Ordering the wrong kit costs more time. And riding on worn bushings long enough means the damage spreads from the bushing itself to the leaf spring, the mounting hardware, and beyond.
Three problems bring most RXV owners to this point:
- A rough, jarring ride that worsens over time, even on smooth surfaces.
- Squeaking, clunking, or popping sounds that appear during acceleration, braking, or cornering.
- Visible sagging or uneven ride height on one side of the rear suspension.
Carts & Parts carries the exact EZGO RXV bushing kits and leaf spring hardware your cart needs, shipped fast from an authorized EZGO dealer with more than 2,000 five-star reviews.
This guide covers everything you need to diagnose worn EZGO RXV leaf spring bushings, choose the right replacement parts, and get your suspension back in spec.
Key Takeaways
What is the EZGO RXV leaf spring bushing and what does it do?
The EZGO RXV leaf spring bushing is a cylindrical rubber sleeve pressed into the eye of each rear leaf spring. It sits between the metal leaf spring eye and the mounting bolt, absorbing vibration and allowing controlled suspension flex without metal-to-metal contact. Without functioning bushings, every bump transfers directly into the frame and causes accelerated wear across the entire rear suspension.
What are the signs of a worn EZGO RXV leaf spring bushing?
Worn EZGO RXV leaf spring bushings typically produce three recognizable symptoms: a rough, jarring ride on surfaces that used to feel smooth; squeaking, clunking, or popping sounds during acceleration, braking, or cornering; and uneven ride height or visible sagging on one side of the rear suspension. Symptoms often start subtle and worsen quickly.
What years does the EZGO RXV Leaf Spring Bushing Kit (SPN-0037) fit?
The EZGO RXV Leaf Spring Bushing Kit (PN# SPN-0037) fits all RXV gas and electric models from 2008 through current production. The 2008 redesign introduced new suspension geometry and bushing dimensions that are not interchangeable with pre-2008 RXV models. Always verify your cart’s model year using the serial plate on the passenger-side frame rail before ordering.
Can worn leaf spring bushings damage other suspension parts?
Worn EZGO RXV leaf spring bushings allow uncontrolled metal-to-metal movement at the leaf spring mounting points. Over time, that movement elongates the spring eyes, damages mounting bolts, and accelerates wear on the leaf spring itself. Catching bushing wear early protects the surrounding hardware and avoids a much more expensive repair that includes the spring, U-bolts, and mounting hardware.
What Does the Leaf Spring Suspension System Do on an EZGO RXV?
The EZGO RXV rear suspension uses a mono-leaf spring setup paired with hydraulic shock absorbers to manage load, dampen impact, and maintain rear axle alignment during operation.
The leaf spring runs longitudinally under the rear of the frame, mounted at the front and rear to the frame rail with U-bolts clamping it to the rear axle.
Each mounting point uses a bushing to allow the spring to flex without transmitting shock or vibration directly into the frame.
Understanding how this system works helps you catch problems early and choose the right parts for your specific situation.
How Do Leaf Spring Bushings Fit Into the System?
Leaf spring bushings are the interface between the spring eye and the mounting bolt at both the front and rear pivot points of each leaf spring.
The spring eye is the circular loop at each end of the leaf spring. The bushing presses into that loop.
The mounting bolt passes through the bushing’s inner bore.
Under load, the spring flexes, and the bushing allows slight rotation and movement without the spring eye contacting the bolt directly.
Every pivot movement that goes through those bushings wears them slightly.
Over time, heat, UV exposure, and repeated flexing break down the rubber compound.
Rubber bushings on an EZGO RXV typically last three to five years under normal use, less on carts with heavy loads, lifted suspension, or rough terrain.
For a broader look at how bushings function across all EZGO suspension locations, the EZGO Suspension and Steering Parts Guide covers the full system in detail.
Which EZGO RXV Leaf Spring Bushing Kit Is Right for My Cart?
The EZGO RXV and TXT use different bushing dimensions and are not interchangeable.
Model year matters for the RXV specifically because the 2008 redesign changed suspension geometry and bushing specifications.
Carts & Parts stocks the correct kits for every current EZGO model, including heavy-duty leaf-spring options for carts carrying added weight or running lifted configurations.
> EZGO RXV Leaf Spring Bushing Kit Years 2008-Up, PN# SPN-0037
The EZGO RXV Leaf Spring Bushing Kit Years 2008-Up (PN# SPN-0037) is the correct replacement kit for all RXV gas and electric models from 2008 through current production.
Each kit includes 2 spacers and 4 bushings, providing everything needed for a complete rear leaf spring bushing replacement on both sides of the rear suspension.
> EZGO TXT Leaf Spring Bushing Kit, PN# SPN-0032
The EZGO TXT Leaf Spring Bushing Kit (PN# SPN-0032) fits TXT and Medalist models from 1994 through 2022.
Each kit includes 4 bushings and 2 spacers. The TXT rear suspension uses different mounting dimensions than the RXV, and the kits are not interchangeable.
The TXT suspension bushing design remained consistent across 28 years of production, making parts selection straightforward once you confirm your model.
> EZGO RXV A-Arm Bushing Kit Years 2008-Up, PN# SPN-0039
The EZGO RXV A-Arm Bushing Kit Years 2008-Up (PN# SPN-0039) addresses the front suspension bushing locations on the RXV.
While the rear uses leaf springs, the front uses an A-arm (double-wishbone) independent suspension setup.
The A-arm bushings wear separately from the leaf spring bushings and show different symptoms, primarily steering wander and front-end clunking during turns.
Each kit includes 4 bushings and 2 spacers.
Many RXV owners discover front A-arm bushing wear at the same time as rear leaf spring bushing wear.
Inspecting both locations during a suspension service prevents a return visit shortly after.
For a complete look at all EZGO bushing types, locations, and installation methods, see the Golf Cart Bushings Guide.
Robert Toles searched online for an OEM part for his EZGO RXV and found exactly what he needed at Carts & Parts:
“Search the online for a new Motor Brake for my EZGO RXV. Carts & Parts had the OEM part at a great price. I’m someone that’s a little leery of order in anything online for the obvious reasons. The Part arrived fast and was exactly what I had expected, an original OEM part. I’m extremely happy with the service I received and would recommend Carts & Parts as a company you can trust. 5 🌟”
— Robert Toles
> EZGO RXV Heavy Duty Leaf Spring, PN# 20204
The EZGO RXV Heavy Duty Leaf Spring (PN# 20204) is a tapered mono-leaf spring designed for RXV models carrying added weight beyond the factory two-passenger configuration.
Carts running rear seat kits, cargo boxes, lift kits, or off-road use benefit from the increased load capacity of the heavy-duty spring over the standard OEM unit. Sold individually.
> OEM EZGO Golf Cart Heavy Duty Rear Leaf Spring, PN# 604494
The OEM EZGO Golf Cart Heavy Duty Rear Leaf Spring (PN# 604494) is a genuine E-Z-GO OEM tapered heavy-duty spring designed for four-passenger vehicles.
Fitment covers 2008 to 2018 RXV Gas Carbureted, 2008 to 2016 RXV Electric 48V, 2017 to 2021 RXV Electric Elite ADVB1, 2019 RXV Gas Kawasaki EFI, and 2010 to 2019 2FIVE models (excludes EX1 and ADVB2 models).
Sold individually; two required per vehicle. The rear eyelet uses 624030 bushings and a 620161 spacer (sold separately).
> OEM EZGO Heavy-Duty Rear 4-Leaf Spring, 2009-2025 Kawasaki Models, PN# 605722
The OEM EZGO Heavy-Duty Rear 4-Leaf Spring (PN# 605722) fits EZGO models powered by the Kawasaki engine from 2009 through 2025.
The 4-leaf design provides significantly higher load capacity than the standard OEM spring and is the correct OEM upgrade for Kawasaki-powered RXV and gas models, adding rear seating, cargo weight, or lift configurations.
Always verify fitment using your cart’s serial number before ordering.

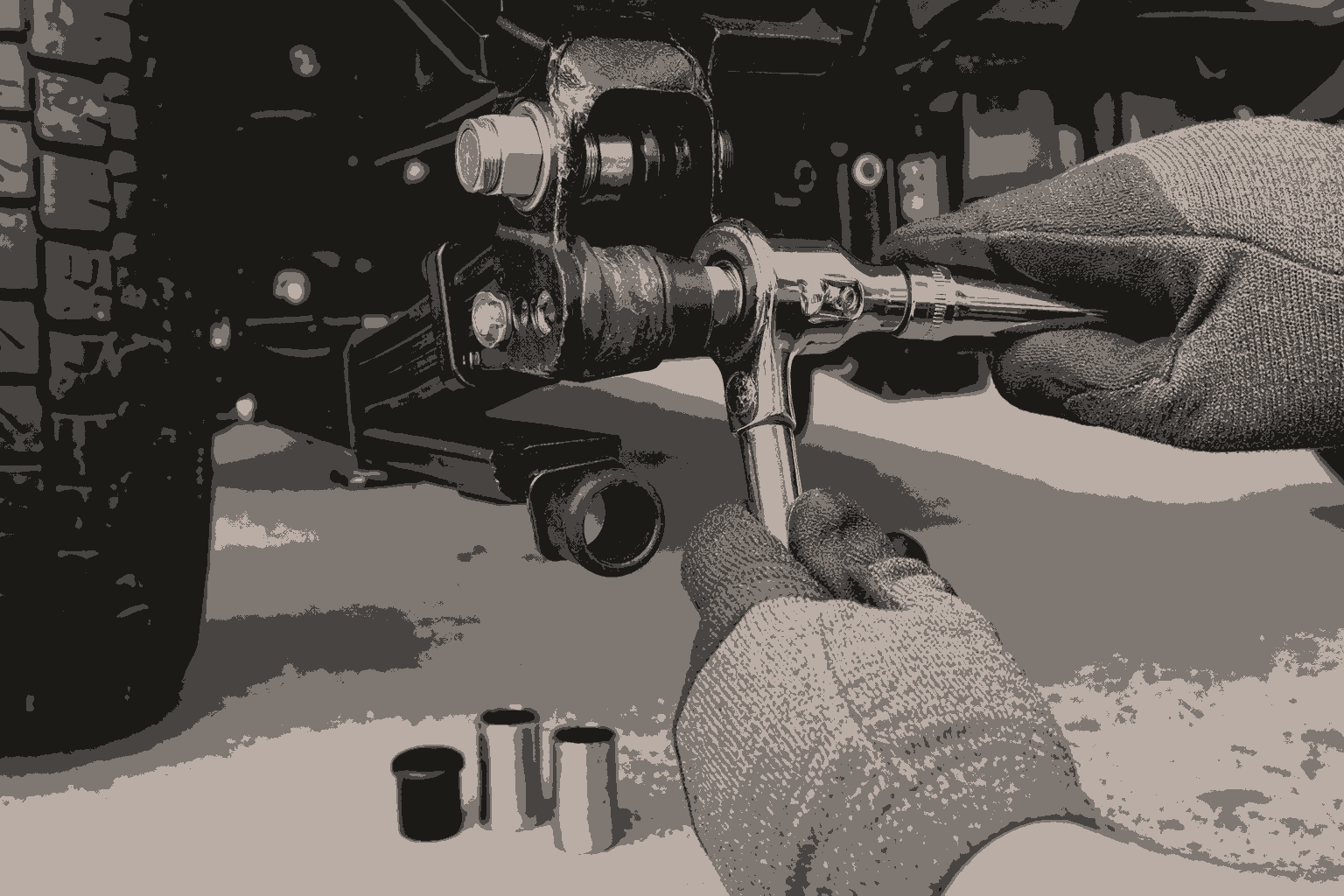

How Do You Replace EZGO RXV Leaf Spring Bushings?
EZGO RXV leaf spring bushings can be replaced without a hydraulic press using a bolt-and-washer pulling method with an impact driver, making the job accessible for most owners with basic hand tools.
Proper technique matters: pressing bushings in straight without deforming them determines how long the new bushings last.
Follow these steps for a complete rear leaf spring bushing replacement on an RXV (2008-Up):
- Lift and support the rear of the cart. Use a floor jack and place jack stands under the frame rails. Never work under a cart supported only by a floor jack.
- Remove the U-bolts and lower the axle slightly. Loosen and remove the U-bolt hardware clamping the leaf spring to the rear axle. Allow the axle to drop enough to access the spring mounting bolts.
- Remove the front and rear spring mounting bolts. Apply penetrating oil to corroded fasteners and allow 15 to 20 minutes before attempting removal.
- Extract the leaf spring from the cart. With mounting bolts removed, slide the spring free of the frame brackets.
- Remove the old bushings. If the rubber has bonded to the spring eye, cut the old bushing with a utility knife to free it. Avoid damaging the spring eye bore.
- Prepare the new bushing for installation. Apply grease to the inside of the spring eye and to the outer surface of the new bushing. Lubrication is critical for correct seating.
- Press the new bushing into the spring eye. Thread a long bolt through the spring eye, place large washers on each side, and use a nut and impact driver to pull the bushing in straight. Stop immediately if the bushing begins to angle or cock during entry.
- Seat the bushing fully. The flange must sit tight against the spring eye face. Incomplete seating causes premature noise and wear.
- Reinstall the spring, hardware, and U-bolts. Torque all fasteners to the values specified in your EZGO service manual for your model year.
- Test drive and confirm. Road-test the cart on varied surfaces. Noise and rough ride should be fully resolved.
Eddie ordered a part from Carts & Parts on a Sunday afternoon and had it on his doorstep three days later, getting his cart back on the road fast:
“I can’t say enough about how pleased I am with my first transaction with Carts and Parts!!! I first reached out with a question on a Sunday afternoon, not expecting a reply until the next day, Monday. Much to my surprise, I get a text message asking how they could help within minutes of my request… Here I am, 3 days later, on Wednesday and I find the part on my doorstep… my cart is back on the road!! YeeHaw!! As a retired senior, I had almost forgotten that this is how customer service used to be.”
— Eddie
What Happens If You Ignore Worn EZGO RXV Leaf Spring Bushings?
Delaying a bushing replacement rarely saves money.
Once the rubber fails and metal-to-metal contact begins, the damage spreads quickly to surrounding components.
Riding on worn EZGO RXV leaf spring bushings leads to:
1. Elongated spring eyes.
Metal-to-metal movement wears away material from inside the spring eye, requiring full leaf spring replacement.
2. Damaged mounting hardware.
Mounting bolts and frame brackets absorb impact loads they were not designed to handle once the bushing cushion is gone.
3. Accelerated leaf spring fatigue.
Uncontrolled flex concentrates stress at the spring eyes, shortening the spring’s lifespan.
4. Unstable rear axle behavior.
In advanced failure, rear axle positioning becomes inconsistent, affecting braking and directional stability under load.

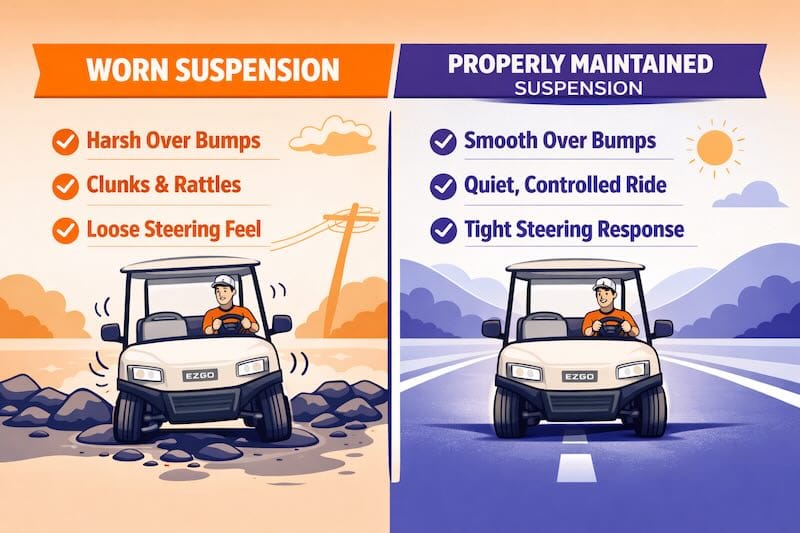

What Does a Properly Maintained RXV Suspension Feel Like?
Replacing worn EZGO RXV leaf spring bushings restores the ride quality the cart delivered when new.
The improvement is immediate and noticeable from the first drive.
Owners who complete a full bushing service on their RXV report:
- Smooth, quiet operation over the same surfaces that previously rattled or clunked.
- Stable, even ride height with both sides of the rear suspension sitting level under load.
- Confident handling with predictable cornering and braking behavior restored.
- Protected surrounding hardware, including the leaf spring, U-bolts, and frame mounting brackets.
The full EZGO Golf Cart Parts Guide covers maintenance intervals and part selection for every EZGO system, providing a single resource to keep your cart in top condition.
Dennis Bruni found exactly what he needed at Carts & Parts:
“Great staff, quality products, attention to detail and of course spot on pricing. Highly recommended!”
— Dennis Bruni
Get Professional EZGO RXV Suspension Parts
Carts & Parts is an authorized EZGO dealer in Union City, Indiana, serving customers nationwide.
Every suspension kit in stock ships from a team that works on EZGO RXV, TXT, and Express models every day.
The same people answering your parts questions are the same people servicing carts in the shop.
With more than 1,550 five-star reviews and free shipping on orders over $50, getting the right part is fast and straightforward.
Call (937) 459-8891 to confirm your part before you order.
Frequently Asked Questions About EZGO RXV Leaf Spring Bushings
What does the EZGO RXV Leaf Spring Bushing Kit (SPN-0037) include?
The EZGO RXV Leaf Spring Bushing Kit (PN# SPN-0037) includes 2 spacers and 4 bushings. We stock it for all RXV gas and electric models from 2008 through current production. The kit provides everything needed to replace all rear leaf spring bushing locations on both sides of the rear suspension in a single service.
How often should I replace leaf spring bushings on my EZGO RXV?
Inspect EZGO RXV leaf spring bushings every 12 months under normal use and replace them at the first sign of cracking, deformation, or noise. Carts running heavy loads, off-road terrain, or lifted configurations should be inspected every six months. Most rubber bushings last three to five years under standard conditions.
Will worn leaf spring bushings affect steering on an EZGO RXV?
Worn rear leaf spring bushings affect ride quality and rear axle stability but do not directly control steering. If your RXV also shows steering wander or front-end clunking, inspect the front A-arm bushings separately. The EZGO RXV A-Arm Bushing Kit (SPN-0039) addresses front suspension bushing wear that does affect steering response.
Does the leaf spring bushing kit (SPN-0037) fit both gas and electric EZGO RXV models?
Yes. The EZGO RXV Leaf Spring Bushing Kit (PN# SPN-0037) fits all RXV gas and electric models from 2008 forward. The rear suspension design and bushing specifications are shared across both powertrains for the 2008-Up generation. Always confirm your cart’s year using the serial plate on the passenger-side frame rail before ordering.
What is the difference between the RXV and TXT leaf spring bushing kits?
The EZGO RXV Leaf Spring Bushing Kit (SPN-0037) and the EZGO TXT Leaf Spring Bushing Kit (SPN-0032) use different bushing dimensions and are not interchangeable. The RXV rear suspension uses different mounting geometry than the TXT. Confirming your model before ordering prevents delays.
Do I need to replace the leaf spring itself when I replace the bushings?
Replace the leaf spring if the spring eye bore shows elongation, cracking at the eye, or visible permanent deformation from metal-to-metal wear. If the spring eye is intact and the spring itself shows no fatigue cracks or set, bushing replacement alone restores full function. Inspect the spring carefully each time bushings are removed.
Can I replace EZGO RXV leaf spring bushings myself, or do I need a technician?
Leaf spring bushing replacement on an EZGO RXV is accessible for owners with basic hand tools and a floor jack. The bolt-and-washer pulling method installs new bushings without a hydraulic press. Correct technique during bushing seating and proper torque on all fasteners are the critical steps. Call us at (937) 459-8891 and our team can walk you through the process before you start.
Where can I buy OEM and aftermarket EZGO RXV leaf spring bushings?
Carts & Parts stocks the EZGO RXV Leaf Spring Bushing Kit (SPN-0037), TXT Leaf Spring Bushing Kit (SPN-0032), RXV A-Arm Bushing Kit (SPN-0039), and EZGO OEM leaf springs including PN# 604494 and PN# 605722. We ship nationwide with free shipping on orders over $50. Call (937) 459-8891 or order online.
