A golf cart charger receptacle is the port on the cart body that the charger plugs into, and on an EZGO it has to match the system voltage, the battery chemistry, and the connector shape exactly.
You plug in the charger and nothing happens.
The connection feels loose, and the charger shuts off partway through the cycle.
After a lithium upgrade, the plug no longer fits at all.
Now the cart is dead, and the fix is not obvious.
A receptacle that matches the cart makes charging invisible. A receptacle that does not match means the charger never starts, or starts and quits.
Three things go wrong when receptacle compatibility is ignored:
- The charger cannot communicate with the battery system and refuses to start.
- Loose or worn connections cause intermittent charging, which damages batteries over time.
- A lead acid receptacle on a lithium system creates a voltage mismatch that can damage the BMS.
Carts & Parts stocks OEM EZGO charger receptacles for both 48V lead acid and 51V lithium systems, and every part ships with the correct wiring harness, connectors, and housing for plug and play installation. The guide below covers which golf cart charger receptacle fits each EZGO model, how the 48V and 51V systems differ, and how to confirm the right OEM replacement for your cart.
Key Takeaways
Are EZGO 48V and 51V lithium charger receptacles interchangeable?
EZGO 48V lead acid and 51V lithium charger receptacles are not interchangeable. The 602529 48V receptacle uses a triangular 3-pin connector for Delta-Q chargers, while the 651410 and 651531 51V receptacles use a lithium specific connector and support Samsung SDI battery management communication.
Which charger receptacle fits an EZGO RXV?
An EZGO RXV with lead acid batteries from 2008 to 2024 uses the OEM EZGO 48V Charger Receptacle, PN# 602529, which also fits 48V TXT models. An RXV ELiTE with factory Samsung SDI lithium from 2017 to 2026 uses the OEM EZGO RXV 51V Lithium Receptacle, PN# 651410.
Which receptacle fits EZGO Express and Cushman lithium carts?
The OEM EZGO 51V Lithium Receptacle, PN# 651531, fits 2019 to 2026 Express L6, S4, and S2, 2021 to 2026 Express Refresh models, 2019 to 2026 Cushman Hauler 800 and 800X, and 2020 to 2026 Cushman Shuttle 2, 4, 6, and 8.
Do you need a new receptacle when converting an EZGO to lithium?
A lithium conversion on an EZGO requires the 51V lithium receptacle and the matching lithium charger, because the 48V components use a different connector and cannot carry BMS communication. The old receptacle and charger cannot be reused on the lithium pack.
Other Notable Takeaways
- OEM EZGO receptacles include the interlock that keeps the cart from driving while the charger is plugged in.
- Carts & Parts ships receptacles nationwide with free shipping on orders over $50.00.
| Feature | 48V Lead Acid (602529) | 51V Lithium (651410 / 651531) |
|---|---|---|
| Voltage system | 48V | 51V |
| Battery type | Lead acid | Samsung SDI lithium |
| Plug shape | Triangular 3-pin | Lithium specific connector |
| Models | RXV 2008 to 2024, TXT 48V | RXV ELiTE (651410); Express and Cushman (651531) |
| Charger | Delta-Q 48V | OEM lithium charger 10009053G03 |
| Interchangeable | No | No |
Source: Carts & Parts live product listings. Confirm fitment against your serial number before ordering.
What Is a Golf Cart Charger Receptacle and How Does It Work?
A golf cart charger receptacle is the female port mounted on the cart body that accepts the charger plug, and on an EZGO RXV, TXT, Express, or Cushman it does four jobs at once.
- Transfers charging current from the charger to the battery pack.
- Maintains correct polarity.
- Signals the charger to begin its charge cycle.
- Disables cart operation while charging on most EZGO models.
When the receptacle fails or is mismatched, charging never starts correctly.

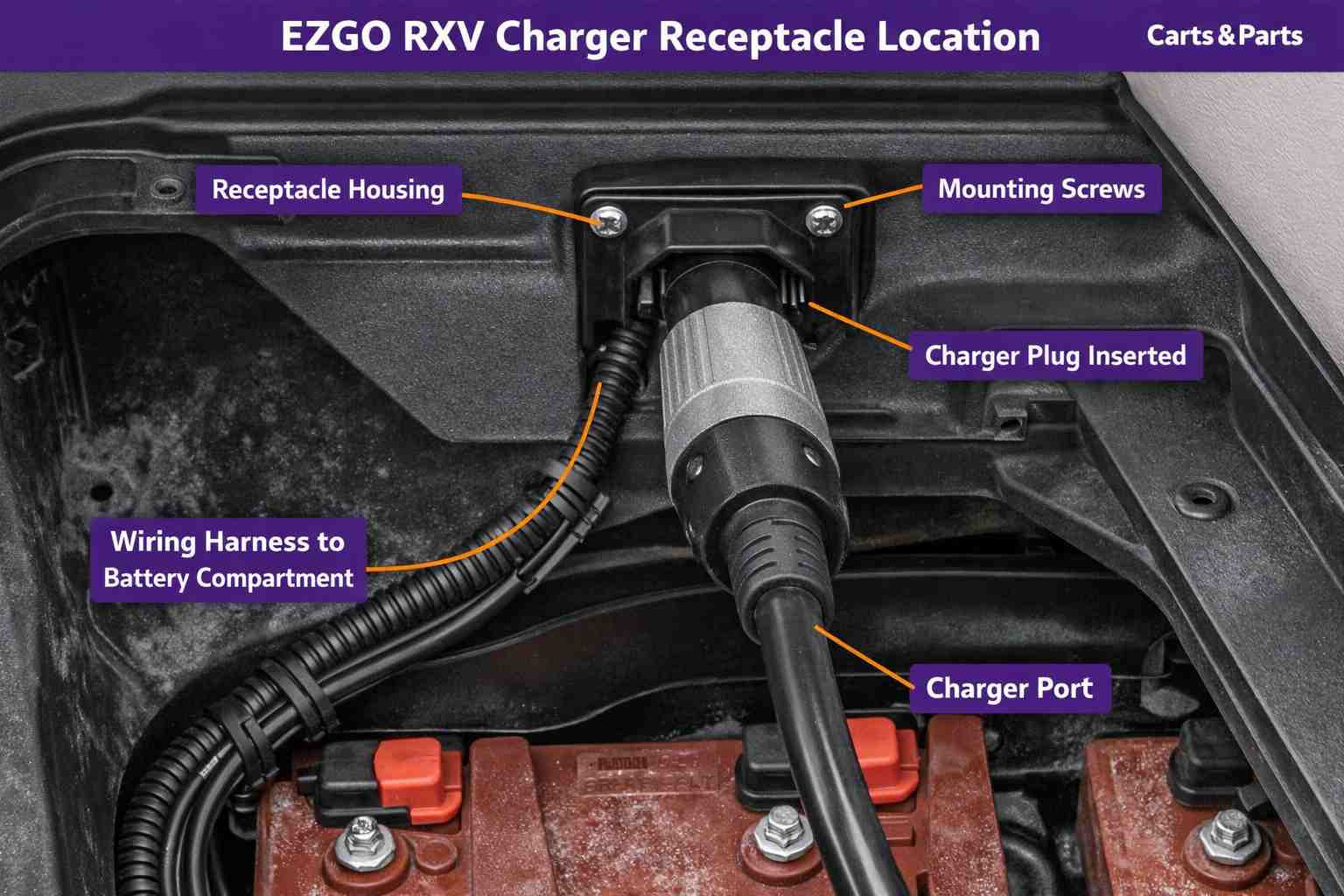

How Does the Receptacle Connect the Charger to the Battery Pack?
On EZGO carts the receptacle wires directly to the main positive and negative battery terminals, so charging current flows through the receptacle and straight into the pack.
Just as important, the receptacle lets the charger and the battery system talk to each other. When that communication breaks, the charger shuts down or refuses to start, which is why a damaged or incompatible receptacle causes charging errors long before the batteries themselves fail.
Our EZGO golf cart parts guide shows where the receptacle sits among the rest of the electrical system.
What Decides Whether a Receptacle Is Compatible?
Four factors decide receptacle compatibility on an EZGO, and missing any one of them starts charging problems.
- Voltage. 48V systems use lead acid batteries and 51V systems use Samsung SDI lithium packs. A 48V receptacle cannot safely support a 51V lithium charger.
- Plug design. 48V RXV and TXT carts use a triangular 3-pin plug. Lithium models use a lithium specific connector shape, and a plug that does not match will not seat or make consistent contact.
- Battery chemistry. Lithium systems rely on battery management system communication through the receptacle, and a lead acid receptacle cannot carry it.
- Safety interlocks. OEM EZGO receptacles include the feature that prevents the cart from driving while charging. Aftermarket or incorrectly installed receptacles often defeat it.
Battery and charging system details beyond the receptacle are covered in our EZGO golf cart batteries and electrical guide.
How Do You Identify the Correct Receptacle for Your Cart?
Identifying the correct receptacle for an EZGO RXV, TXT, Express, or Cushman takes a serial number, a look at the plug shape, and a look at the batteries, in that order.
Your EZGO serial number confirms the model and year. The receptacle shape and the battery type settle the rest.
Tracy Mora found out how simple the process can be when she needed a replacement part for her EZGO:
"Carts and Parts helped me find the correct part number and shipped us what we needed pronto. Excellent customer service!"
With more than 2,000 online reviews and a near perfect rating, Carts & Parts verifies model, year, and battery type over the phone or by text so the right receptacle ships the first time.

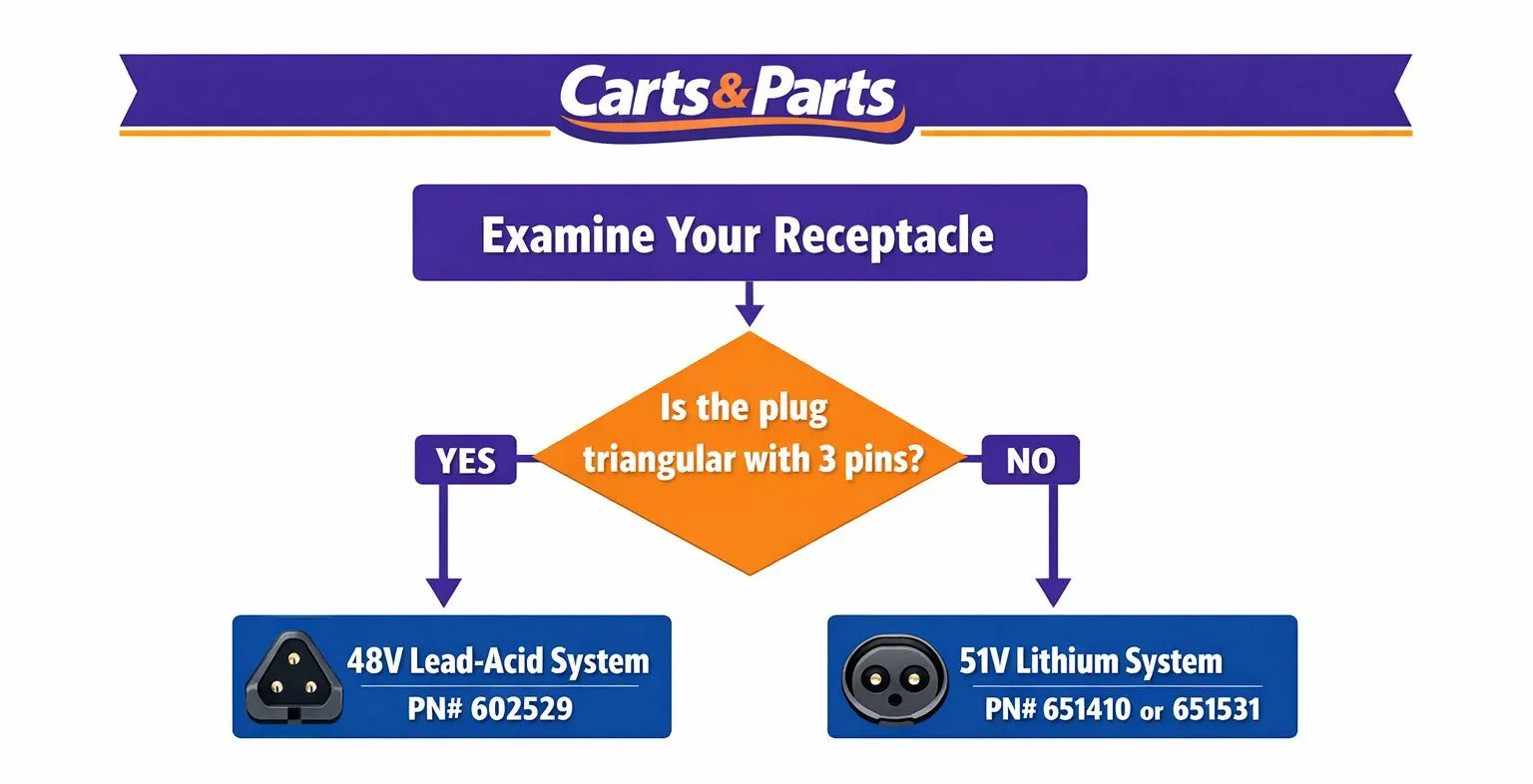

What Are the Steps to Confirm Your EZGO Receptacle Type?
Confirming an EZGO receptacle type takes four checks:
- Check your model year and voltage on the serial number plate, located under the seat or on the frame.
- Look at the receptacle shape. Triangular means 48V lead acid. Lithium models use a different connector.
- Inspect the batteries. Caps mean lead acid. A sealed Samsung pack means lithium.
- Match the OEM part number using the fitment lists below, or call (937) 459-8891 for verification.
How Do 48V Lead Acid and 51V Lithium Receptacles Differ?
EZGO engineered the 48V lead acid and 51V lithium receptacles with different connectors on purpose, so owners cannot connect an incompatible charger. Forcing the wrong connection can damage chargers, wiring, and batteries.
Which Receptacle Fits 48V Lead Acid EZGO Carts?
The OEM EZGO 48V Charger Receptacle, PN# 602529, fits 2008 to 2024 RXV 48V and TXT 48V models with lead acid batteries.
The OEM EZGO 48V charger receptacle, PN# 602529 has a triangular 3-pin female DC input, an OEM plastic mounting housing, pre-terminated wiring to the main positive and negative, and is built for Delta-Q 48V chargers. Lithium systems cannot use it.
The receptacle is only half the match. Our EZGO golf cart charger guide covers which OEM charger pairs with each receptacle, from the 36 volt Lester Summit II to the 48 volt and 51 volt Gen2 lithium units.
💡 Tip: A triangular charger plug with three pins almost always means a 48V lead acid system.
Which Receptacle Fits the RXV ELiTE Lithium?
The OEM EZGO RXV 51V Lithium Receptacle, PN# 651410, fits 2017 to 2026 RXV ELiTE carts and any RXV with factory Samsung SDI lithium.
The OEM EZGO RXV 51V lithium charger receptacle, PN# 651410 includes the molded housing and the factory wiring harness for plug and play installation.
Which Receptacle Fits Express and Cushman Lithium Carts?
The OEM EZGO 51V Lithium Receptacle, PN# 651531, is the correct replacement for lithium Express and Cushman models.
Order the OEM EZGO 51V lithium charger receptacle, PN# 651531 for 2019 to 2026 Express L6, S4, and S2, 2021 to 2026 Express Refresh, 2019 to 2026 Cushman Hauler 800 and 800X, and 2020 to 2026 Cushman Shuttle 2, 4, 6, and 8. Owners comparing the Express platforms can read our overview of the EZGO Express line.
What Are the Signs an EZGO Charger Receptacle Is Failing?
An EZGO charger receptacle rarely fails all at once; the housing, the contacts, and the charger behavior each give warning first.
Visual signs: melted or discolored plastic housing, cracks or warping in the body, corrosion or green buildup on the metal contacts, heat marks around the pins, or loose mounting that lets the receptacle shift.
Charging signs: the charger will not start when plugged in, charging cuts in and out when the plug is bumped, error codes point to communication or voltage, the plug feels loose, the receptacle heats up during charging, or the pack never reaches full voltage.
Any one of those is reason enough to replace the receptacle before it takes a charger or a pack with it.
Patricia Schlangen needed a receptacle for a much older cart and got the same attention:
"We have a 1994 EZGo. Needed a new receptacle. Cole didn't have one, but he researched until he found one. Thanks Cole. Just came and works perfectly."
| Symptom | Likely Cause | What to Check |
|---|---|---|
| Charger will not start when plugged in | Communication fault or wrong receptacle type | Battery type against receptacle part number |
| Charging cuts in and out when bumped | Loose or worn contacts | Plug seating and housing mounting |
| Receptacle heats up during charging | Corroded or loose contacts creating resistance | Pins for discoloration and green buildup |
| Voltage reading fluctuates while wiggling housing | Failing internal connections | Replace the receptacle |
| Plug will not seat after lithium conversion | 48V receptacle still installed | Install 651410 or 651531 with the lithium charger |
Source: Carts & Parts service experience and OEM E-Z-GO product data.
Can You Use a 48V EZGO Receptacle With Lithium Batteries?
A 48V EZGO receptacle cannot be used with lithium batteries, because Samsung SDI lithium systems run at 51V, require BMS communication through the receptacle, and use a connector the lead acid receptacle does not have.
⚠️ Warning: Forcing a mismatched receptacle can damage the BMS and create a serious safety hazard. Always use the receptacle built for your battery chemistry.
The U.S. Pipeline and Hazardous Materials Safety Administration publishes safety guidance for lithium batteries, and proper charging equipment is the first line of that guidance.
A lithium conversion means replacing the receptacle along with the charger. The old 48V components cannot be reused on the lithium pack.
How Do You Test an EZGO Golf Cart Charger Receptacle?
Testing an EZGO charger receptacle takes a multimeter set to DC volts and about five minutes.
- Unplug the charger and inspect the receptacle for damage, corrosion, or heat marks.
- Set the multimeter to DC voltage.
- Probe the positive and negative terminals inside the receptacle.
- Read the result. Expect roughly 48 to 52V on a 48V system and 51 to 58V on a lithium system.
- Wiggle the housing while watching the reading. A reading that fluctuates means the internal connections are failing.
An unstable reading, or zero, means replacement is the fix.
✅ Good to Know: A receptacle that reads full voltage but still will not start the charger usually has a communication or interlock problem rather than a power problem. Match the receptacle to the battery type before replacing the charger.
Battery cables carry the same current the receptacle does, and our EZGO battery cable sets guide covers the connections on the other side of the pack.
What Happens If You Do Not Replace a Bad Receptacle?
Leaving a bad receptacle on an EZGO turns one small part into a battery, wiring, or charger repair.
- Batteries never fully charge because the charger cannot push full current through a damaged connection.
- Heat at corroded or loose contacts melts insulation and connectors.
- Repeated incomplete charges shorten battery life, especially on lithium packs.
- Severe corrosion or loose contacts can arc during high current charging, which is a fire risk.
Replacing a receptacle early costs far less than replacing batteries or a wiring harness.
What Does Proper Charging Look Like With the Correct Receptacle?
Proper charging on an EZGO with the correct 602529, 651410, or 651531 receptacle is invisible: you plug in, walk away, and come back to a full pack.
- The plug seats firmly with no wiggle or play.
- Charging runs uninterrupted through the complete algorithm.
- No heat builds at the receptacle during the cycle.
- Full voltage is reached consistently with no error codes.
Tim Borton saw the difference accuracy and speed make:
"Parts were correct and shipped same day. Very friendly."
Get OEM EZGO Charger Receptacles From Carts & Parts
Carts & Parts is a family owned, authorized E-Z-GO dealer in Union City, Indiana, and every receptacle in stock is a genuine OEM part shipped nationwide with free shipping on orders over $50.00.
More than 2,000 online reviews back the fitment check that happens before each order ships. Call (937) 459-8891 with your model, year, and battery type, and the parts team will confirm the right receptacle the first time.
OSHA standard 1926.441 on batteries and battery charging sets out ventilation and handling requirements for charging areas, and OEM components help keep a charging setup inside those limits.
Frequently Asked Questions About EZGO Charger Receptacles
What is an EZGO golf cart charger receptacle?
An EZGO golf cart charger receptacle is the female socket on the cart that accepts the charger's male plug. The receptacle carries power from the charger to the battery pack and enables charger to battery communication.
Are EZGO 48V and 51V lithium charger receptacles interchangeable?
No. The 48V lead acid receptacle, PN# 602529, and the 51V lithium receptacles, PN# 651410 and PN# 651531, differ in voltage, connector design, and charging protocol, so neither will work in the other system.
Which charger receptacle fits my EZGO RXV?
A 2008 to 2024 RXV with lead acid batteries uses PN# 602529. A 2017 to 2026 RXV ELiTE with Samsung SDI lithium uses PN# 651410. Check the battery type before ordering.
Can I replace an EZGO charger receptacle myself?
Yes. OEM receptacles are plug and play with pre-terminated wiring. Disconnect the battery pack first, and note how the existing wiring connects before removing the old receptacle.
Why won't my EZGO charger plug fit into the receptacle?
The plug and receptacle do not match. Different EZGO models and battery types use different connector shapes, and a 48V lead acid charger plug will not fit a 51V lithium receptacle. Verify the voltage and battery type.
How long does an EZGO charger receptacle last?
Many years of everyday use. Moisture, corrosion, rough handling, and loose connections shorten its life, so inspect the receptacle periodically for wear.
Do I need a new charger receptacle when converting an EZGO cart to lithium?
Yes. A lithium conversion requires the 51V lithium receptacle and the matching lithium charger, because the 51V system uses a different connector and voltage specification than the 48V lead acid system.
What causes EZGO charger receptacle failure?
Corrosion from moisture, heat damage from loose connections, physical damage from impacts, and long term wear cause most receptacle failures. Keeping the receptacle clean and dry extends its service life.
What charger works with a 51V EZGO lithium receptacle?
The 51V lithium receptacle pairs with the OEM EZGO lithium charger, PN# 10009053G03, built for Samsung SDI systems. Lead acid chargers are not compatible, because the lithium charger communicates with the BMS and uses a different charge algorithm.
Do you ship EZGO charger receptacles nationwide?
Yes. We ship all three OEM receptacles nationwide, and orders over $50.00 ship free. Text a photo of your receptacle and serial plate to (937) 459-8891 and we will confirm the part before it ships.
